Frequency Converter


Ka Band

Type Fréquence Consommation mass datasheet
Receiver 27.5 - 30GHz 3W <0.25Kg space_ka_band_receiver.pdf pdf
Transmitter 17.8 - 20.2GHz 12W <0.25Kg space_ka_band_transmitter.pdf pdf
Transceiver RX (27.5 - 30GHz) TX (17.8 - 20.2GHz) RX(4W) TX(10W) <1Kg space_ka_band_transceiver.pdf pdf
Système sur-mesure sales@eurosatcom.eu

Feed


Ka Band

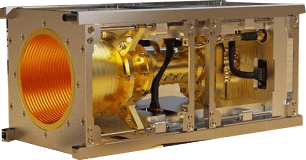

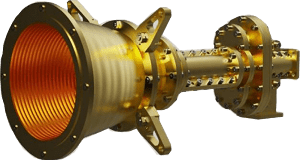

Frequency Cubsat Size Mass datasheet
Ka Band 2U min 1.5Kg txmission_dual_band_horn_antenna_191205.pdf pdf
Système sur-mesure sales@eurosatcom.eu

Modem SDR

Data Rates Modulationss Frequency datasheet
up to 1Gbps up to 1024QAM 75MHz to 6GHz space_modem_sdr_quest.pdf pdf

Components


DC-DC Converter

SPACE GRADE DC-DC CONVERTERS
Maximum Power Output 2.5 Watts 5 Watts 6.5 Watts 10 Watts 20 Watts 30 Watts 40 Watts 80 Watts 500 Watts
12 VDC Input for Cubesats/Miniaturized Sat * 3699
28 VDC Input Spacecraft Bus Low Power / High Efficiency * 4690
28 VDC Input Spacecraft Bus * 53080 5690 99200 5107 5680
53600
5193
53629
5031 53696
50 VDC Input Spacecraft Bus * 7690 7107 7680 7193 7031 73696
70 VDC Input Spacecraft Bus * 8690 8107 8680 8193 8031 83696
100 VDC Input Spacecraft Bus * 9690 9107 9680 9193 9031 93696
120 VDC Input Space Station 3325 3070 3108 3060 3326 3051 33696
  • Proton Rad Hard 100K+®
    Custom Request: sales@eurosatcom.eu
POINT OF LOAD REGULATORS
Maximum Power Output 2.5 Watts 5 Watts 6.5 Watts 10 Watts 20 Watts 30 Watts 40 Watts 80 Watts
5 VDC Input Non-Isolated Series * 5085 5087
12 VDC Input Non-Isolated Series * 5080 5082
16 VDC Input Non-Isolated Series For Cubesats/Miniaturized Satellites * 3693 3694
  • Proton Rad Hard 100K+®
    Custom Request: sales@eurosatcom.eu
461D/E/F/G DC-DC CONVERTER SELECTION
Maximum Power Output 2.5 Watts 5 Watts 6.5 Watts 10 Watts 20 Watts 30 Watts 40 Watts 80 Watts
28 VDC MIL-STD-461D/E/F/G 3090 6681
28 VDC MIL-STD-1275D 3656

Custom Request: sales@eurosatcom.eu

STANDARD INRUSH LIMITER SELECTION
Input Voltage 28 VDC 50 VDC 70 VDC 100 VDC 120 VDC
Proton Rad Hard 100K+® Programmable Inrush Limiter 53635 73635 83635 93635 33635
Proton Rad Hard 100K+® MagLatch Inrush Limiter 53646 73646 83646 93646 33646

Custom Request: sales@eurosatcom.eu

STANDARD SOLID STATE SWITCH FUNCTIONS SELECTION
Input Voltage 28 VDC 50 VDC 70 VDC 100 VDC 120 VDC
150 VDC Proton Rad Hard 100K+® Solid State Relay 53647 73647
250 VDC Proton Rad Hard 100K+® Solid State Relay 83647 93647 33647

Custom Request: sales@eurosatcom.eu

BUS MASTER HYBRID MODULE SELECTION
Input Voltage 28 VDC 50 VDC 70 VDC 100 VDC 120 VDC
Proton Rad Hard 100K+® Bus Master Hybrid Module 53649 73649 83649 93649 33649

Custom Request: sales@eurosatcom.eu

ACTIVE "OR" HYBRID MODULE SELECTION
Input Voltage 1 to 4 VDC 1 to 7 VDC -1 to -4 VDC -1 to -7 VDC
Proton Rad Hard 100K+® Active Diode OR Hybrid Module 53653-3.3 53653-5.0 53654-3.3 53654-5.0

Custom Request: sales@eurosatcom.eu

ANCILLARY PRODUCT LINE UP
Description Model
Booster Hybrid DC-DC converters 3439
Output Sequenced Power Converters 99200
Triple Output High Efficiency DC-DC Converters 3600
High Efficiency Cross Regulated Triple Output Converters 53600
High Efficiency Cross Regulated Quad Output Converters 53629

Custom Request: sales@eurosatcom.eu

Système sur-mesure sales@eurosatcom.eu

EMI Filter

EMI BOOSTER FILTERS. MIL-STD 461C to MIL-STD-461D, E, F, G
Input Voltage 28 VDC 50 VDC 70 VDC 100 VDC 120 VDC 270 VDC
Hybrid EMI Filter Meets MIL-STD-461D/E/F/G CE102 Requirements 53678 73678 83678 93678 33678 23678
  • Proton Rad Hard 100K+®
    Custom Request: sales@eurosatcom.eu
EMI FILTERS MIL-STD-461D, E, F, G
Input Voltage 28 VDC 50 VDC 70 VDC 100 VDC 120 VDC 270 VDC
MOAF EMI Filter 3727
53727
73727 83727 93727 33727 23727
EMI Filter 3738
3723
3742 3742 3742 3739
Système sur-mesure sales@eurosatcom.eu

SOLID STATE RELAYS

SPACE (RAD HARD) SOLID STATE RELAY (SSR) APPLICATIONS
Form 100 V 300 V 500 V 600 V
3A Form A (Normally Open) 53814
3A Form B (Normally Closed) 53815
5A Form A (N.O.) 53807
5A Form A (N.O.) Bi-Directional 53819
5A Form C 53817
10A Form A (N.O.) 53808
10A Form C 53818
15A Form A (N.O.) Bi-Directional 53821
20A Form B (N.C.) 53802
20A Form A (N.O.) 53803
25A Form A (N.O.) Bi-Directional 53822

Custom Request: sales@eurosatcom.eu

Système sur-mesure sales@eurosatcom.eu
